Company introduction
Pepperl+Fuchs is a leading developer and manufacturer of electronic sensors and components for the global automation market.Continuous innovation, enduring quality, and steady growth guarantees continued success, since more than 60 years.Pepperl+Fuchs employs 5,400 people worldwide and has manufacturing facilities in Germany, USA, Singapore, Hungary, Indonesia and Vietnam, most of them ISO 9001 certified.

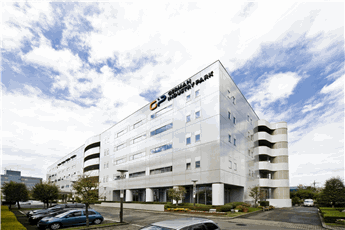

303 German Industry Park 1-18-2, Hakusan Midori-ku.
Yokohama, Kanagawa 226-0006,Japan
Phone: 045-939-7802
FAX: 045-939-7804
E-mail: fa-info@jp.pepperl-fuchs.com
URL: http://www.pepperl-fuchs.co.jp/
Product overview

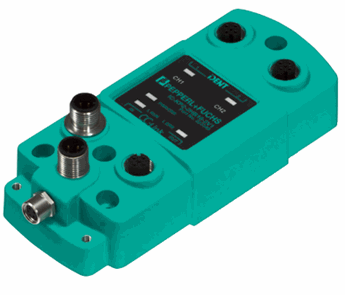

"IDENTControl Compact" is an RFID controller having a built-in CC-Link V2 interface.
This controller is compatible with all the PEPPERL+FUCHS LF, HF, and UHF RFID readers and enables them to be connected to CC-Link.
Copying MELSOFT Library
The following lists the FB library for the system connected to the P+F RFID IDENTControl through the MELSEC-Q series and CC-Link.
FB Library
| Applicable model | Copy | FB name | Function name | Description | Ver. | Last update |
|---|---|---|---|---|---|---|
| IC-KP2-2HB18-2V1 |
[Reference manual] PF-IC-KP2-2HB18-2V1_e.pdf |
P+PF-IC-KP2 -2HB18-2V1 _Read_Write |
Read & Write Data | Reads and writes data with an RFID tag. (All channels are connected to R/W heads.) | 1.00A | Jan. 27, 2014 |
| P+PF-IC-KP2 -2HB18-2V1 _Trigger_CH2 |
Read & Write via TM Mode | Reads and writes data with an RFID Tag via the TM mode. (Trigger sensor at channel 2) | 1.00A | Jan. 27, 2014 | ||
| P+PF-IC-KP2 -2HB18-2V1 _Trigger_CH1 |
Read & Write via TM Mode | Reads and writes data with an RFID Tag via the TM mode. (Trigger sensor at channel 1) | 1.00A | Jan. 27, 2014 | ||
| P+PF-IC-KP2 -2HB18-2V1 _RD_FixCode |
Read FixCode | Reads FixCode (indication-type data) from an RFID tag. (All channels are connected to R/W heads.) | 1.00A | Jan. 27, 2014 | ||
| P+PF-IC-KP2 -2HB18-2V1 _RW_Bytes |
Read & Write Data for large amount bytes | Reads and writes data with an RFID Tag for large amount bytes. (All channels are connected to R/W head.) | 1.00A | Jan. 27, 2014 |
