Panasonic Industrial Devices SUNX Co., Ltd.

Company introduction

We are leveraging sensing and control technologies to implement a variety of automation solutions targeting activities not only at production sites, but also in neighborhoods and cities for an environmentally friendly and comfortable society. At root of these efforts lies a desire to help build a social environment in which people can live in safety and comfort.

Panasonic Industrial Devices SUNX stands ready to expand its business from the field of factory automation (FA) to society automation (SA)* and environmental technology. To accomplish this diversification, we will harness the venture spirit of SUNX and the advanced technologies of Panasonic Electric Works to create new value from SUNX sensing and laser technologies and Panasonic Electric Works control and image processing technologies.

Panasonic Industrial Devices SUNX is dedicated to helping build a comfortable, environmentally friendly society for all people by harnessing sensing and control technologies to bring the benefits of automation to our neighborhoods and cities. Guiding this effort is the Panasonic Group's overarching goal of becoming the industry's No. 1 Environmental Innovation Company.

2431-1, Ushiyama-cho, Kasugai, Aichi 486-0901, Japan
Department in charge: Global Sales & Marketing Division
Technical Support: 0120-394-205
E-mail: Callcenter@gg.jp.panasonic.com
URL: http://panasonic.net/id/pidsx/

Product overview

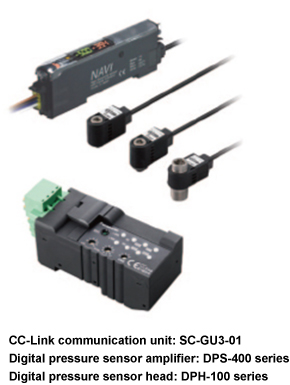

Digital pressure sensor: DPS-400 series
CC-Link communication unit: SC-GU3-01

• Only the sensor amplifier DPS-400 series in the industry can eliminate indication errors between analog outputs and digital indication of pressure sensors in the source pressure control.
  * Indicated pressure values can be transmitted through CC-Link.
• The small sensor head can be attached from the top with a hexagon wrench.
  * The sensor head can be attached from the top, improving the workability of when sensors are installed densely.
• Via the CC-Link communication unit SC-GU3-01, the light receiving amount of up to 16 laser amplifiers can be read and the threshold value can be written (teaching).

For the details of the DPS-400 series
"Pressure Sensors" in the Panasonic Industrial Devices SUNX web site
For the details of the SC-GU3-01
"SC-GU3" in the Panasonic Industrial Devices SUNX web site

Copying MELSOFT Library

With the following profile, the functions of iQ Sensor Solution (iQSS) can be added to the digital pressure sensor DPS-400 series and the CC-Link communication unit SC-GU3-01.
The profile contains information required for startup, operation, and maintenance of devices, such as network parameter information and memory map.Parameters and others can be set with GX Works2.

Profile

[How to use the profile]

Right-click the profile name, and click "Save target as" to save the file in a folder.
For the profile registration, refer to the manual of GX Works2.
